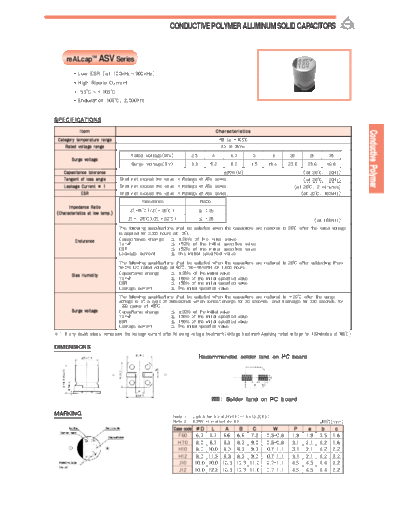

Image preview - the first page of the document



>> Download Samyoung [polymer smd] ASV Series documenatation <<

Text preview - extract from the document

                                                           CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS


      reALcapTM          ASV Series
         Low ESR (at 100kHz~300kHz)
         High Ripple Current
         -55~+105
         Endurance 105, 2,000hrs


SPECIFICATIONS
             Item                                                                       Characteristics




                                                                                                                                                           Conduc ve Po ymer
                                                                                                                                                           Conducttiive Pollymer
 Category temperature range                                                              -55 to +105
     Rated voltage range                                                                  2.5 to 35VDC
                                       Rated Voltage(WV)              2.5           4         6.3         10     16       20       25            35
         Surge voltage
                                       Surge Voltage(SV)              3.3       5.2           8.2        11.5   18.4      23.0    29.0          40.0
    Capacitance tolerance
