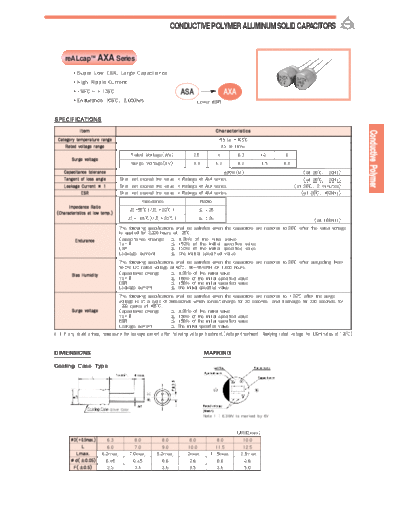

Image preview - the first page of the document



>> Download Samyoung [polymer thru-hole] AXA Series documenatation <<

Text preview - extract from the document

                                                             CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS


      reALcapTM        AXA Series
         Super Low ESR, Large Capacitance
         High Ripple Current
         -55~+105                                                ASA                       AXA
         Endurance 105, 2,000hrs                                         Lower ESR


SPECIFICATIONS
             Item                                                                    Characteristics




                                                                                                                                                            Conduc ve Po ymer
                                                                                                                                                            Conducttiive Pollymer
  Category temperature range                                                          -55 to +105
      Rated voltage range                                                              2.5 to 16VDC
                                             Rated Voltage(WV)         2.5           4           6.3        10       16
         Surge voltage
                                             Surge Voltage(SV)         3.3           5.2         8.2        11.5    18.4
     Capacitance tolerance
