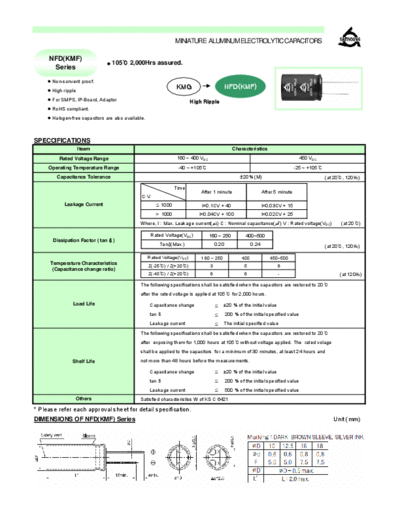

Image preview - the first page of the document



>> Download Samyoung [radial thru-hole] NFD (KMF) Series documenatation <<

Text preview - extract from the document

                                                                  MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

     NFD(KMF)
                                    105 2,000Hrs assured.
      Series
        Non-sonvent proof.
        High ripple
                                                                  KMG                         NFD(KMF)
        For SMPS, IP-Board, Adaptor                                        High Ripple
        RoHS compliant.
        Halogen-free capacitors are also available.



SPECCIFICATIONS
                      Iteam                                                                      Characteristics
           Rated Voltage Range                                    160 ~ 400 VDC                                                      450 VDC
     Operating Temperature Range                                   -40 ~ +105                                                       -25 ~ +105
          Capacitance Tolerance
