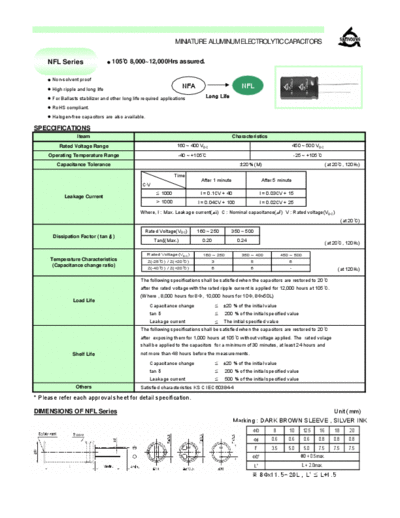

Image preview - the first page of the document



>> Download Samyoung [radial thru-hole] NFL Series documenatation <<

Text preview - extract from the document

                                                                   MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

     NFL Series                        105 8,000~12,000Hrs assured.

        Non-solvent proof
        High ripple and long life                                      NFA                         NFL
        For Ballasts stabilizer and other long life required applications       Long Life
        RoHS compliant.
        Halogen-free capacitors are also available.

SPECCIFICATIONS
                    Iteam                                                                      Characteristics
           Rated Voltage Range                                      160 ~ 400 VDC                                                   450 ~ 500 VDC
     Operating Temperature Range                                     -40 ~ +105                                                     -25 ~ +105
          Capacitance Tolerance
