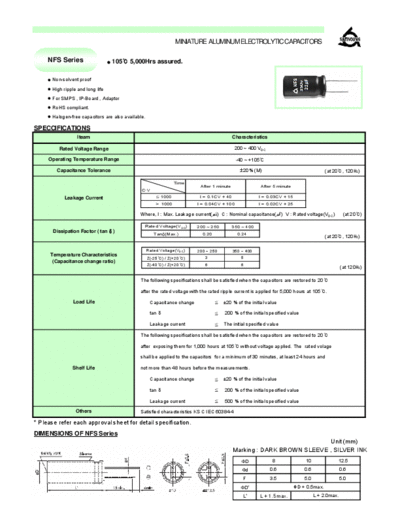

Image preview - the first page of the document



>> Download Samyoung [radial thru-hole] NFS Series documenatation <<

Text preview - extract from the document

                                                                   MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

     NFS Series                        105 5,000Hrs assured.

        Non-solvent proof
        High ripple and long life
        For SMPS , IP-Board , Adaptor
        RoHS compliant.
        Halogen-free capacitors are also available.

SPECCIFICATIONS
                    Iteam                                                                     Characteristics

           Rated Voltage Range                                                                 200 ~ 400 VDC

     Operating Temperature Range                                                               -40 ~ +105

          Capacitance Tolerance
