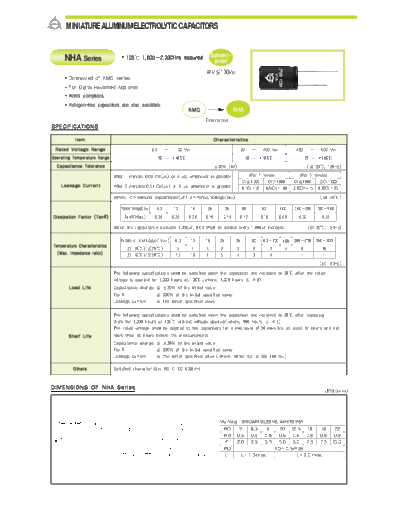

Image preview - the first page of the document



>> Download Samyoung [radial thru-hole] NHA Series documenatation <<

Text preview - extract from the document

      MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS


                                  1 0 5 1 , 0 0 0 ~ 2 , 0 0 0 H r s a s s u r e d        Solvent-
     NHA Series                                                                           proof
                                                                                    WV100VDC
     Downsized of KMG series.
     For Digital Household Appliance
     RoHS compliant.
     Halogen-free capacitors are also available.
                                                                         KMG                             NHA
                                                                                    Downsized
SPECIFICATIONS

          Item                                                                             Characteristics

 Rated Voltage Range                                  6.3     ~    100 VDC                                160        ~     400 VDC           450     ~    500 VDC
Operating Temperature Range                             -55 ~ +105                                             -40 ~ +105                       -25 ~ +105
  Capacitance Tolerance
