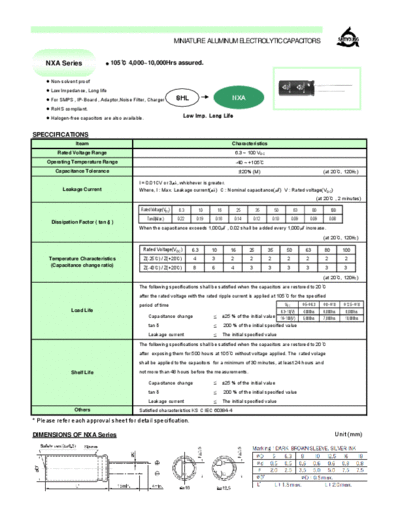

Samyoung [radial thru-hole] NXA Series


>> Download Samyoung [radial thru-hole] NXA Series documenatation <<

Text preview - extract from the document
                                                                      MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS


     NXA Series                     105 4,000~10,000Hrs assured.

        Non-solvent proof
        Low Impedance, Long life
        For SMPS , IP-Board , Adaptor,Noise Filter, Charger           SHL                               NXA
        RoHS compliant.
        Halogen-free capacitors are also available.                       Low Imp. Long Life


SPECCIFICATIONS
                   Iteam                                                                                Characteristics
           Rated Voltage Range                                                                             6.3 ~ 100 VDC
     Operating Temperature Range                                                                            -40 ~ +105
          Capacitance Tolerance
