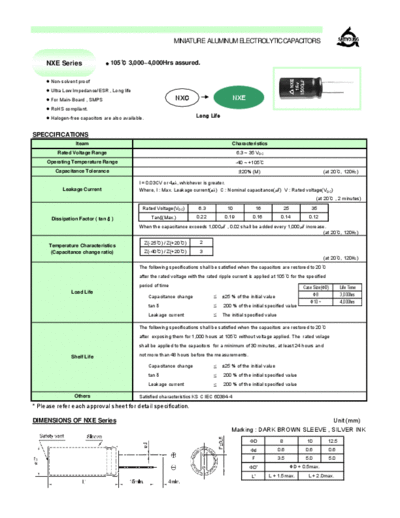

Image preview - the first page of the document



>> Download Samyoung [radial thru-hole] NXE Series documenatation <<

Text preview - extract from the document

                                                                 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS


     NXE Series                     105 3,000~4,000Hrs assured.

        Non-solvent proof
        Ultra Low Impedance/ESR , Long life
        For Main-Board , SMPS                                     NXC                        NXE
        RoHS compliant.
        Halogen-free capacitors are also available.                         Long Life


SPECCIFICATIONS
                   Iteam                                                                     Characteristics
           Rated Voltage Range                                                                  6.3 ~ 35 VDC
     Operating Temperature Range                                                                -40 ~ +105
          Capacitance Tolerance
