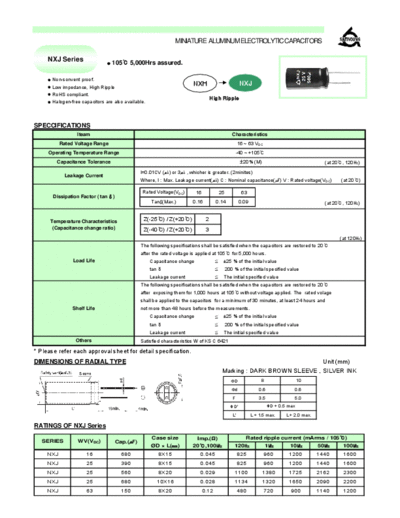

Image preview - the first page of the document



>> Download Samyoung [radial thru-hole] NXJ Series documenatation <<

Text preview - extract from the document

                                                                MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

     NXJ Series                     105 5,000Hrs assured.

        Non-sonvent proof.
        Low impedance, High Ripple
                                                                        NXH                            NXJ
        RoHS compliant.
                                                                                     High Ripple
        Halogen-free capacitors are also available.



SPECCIFICATIONS
                   Iteam                                                                          Characteristics
           Rated Voltage Range                                                                         16 ~ 63 VDC
     Operating Temperature Range                                                                      -40 ~ +105
          Capacitance Tolerance
