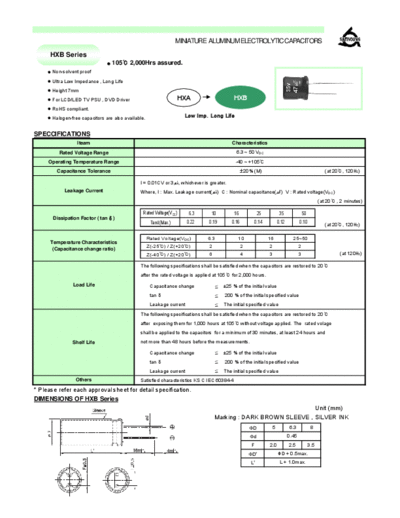

Image preview - the first page of the document



>> Download Samyoung [radial thru-hole] HXB Series documenatation <<

Text preview - extract from the document

                                                                   MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

      HXB Series
                                    105 2,000Hrs assured.
        Non-solvent proof
        Ultra Low Impedance , Long Life
        Height 7mm
        For LCD/LED TV PSU , DVD Driver                            HXA                      HXB
        RoHS compliant.
        Halogen-free capacitors are also available.                    Low Imp. Long Life


SPECCIFICATIONS
                   Iteam                                                                   Characteristics
           Rated Voltage Range                                                                6.3 ~ 50 VDC
     Operating Temperature Range                                                             -40 ~ +105
          Capacitance Tolerance
