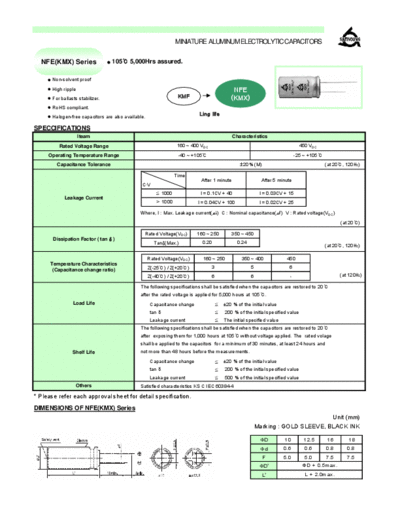

Image preview - the first page of the document



>> Download Samyoung [radial thru-hole] KMX Series documenatation <<

Text preview - extract from the document

                                                                  MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

  NFE(KMX) Series                     105 5,000Hrs assured.

        Non-solvent proof
        High ripple                                                                          NFE
        For ballasts stabilizer.                                   KMF                      (KMX)
        RoHS compliant.
        Halogen-free capacitors are also available.                          Ling life

SPECCIFICATIONS
                      Iteam                                                                   Characteristics
           Rated Voltage Range                                    160 ~ 400 VDC                                                 450 VDC
     Operating Temperature Range                                   -40 ~ +105                                                 -25 ~ +105
          Capacitance Tolerance
