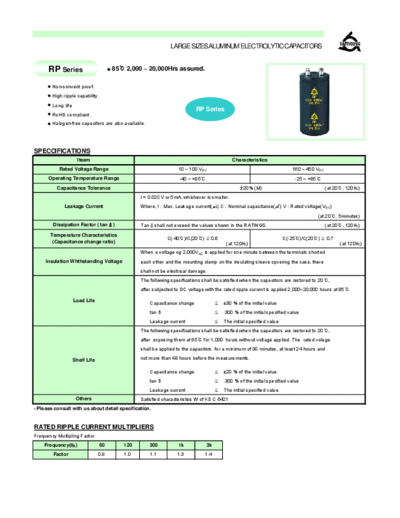

Image preview - the first page of the document



>> Download Samyoung [screw-terminal] RP Series documenatation <<

Text preview - extract from the document

                                                                  LARGE SIZES ALUMINUM ELECTROLYTIC CAPACITORS


      RP Series                            85 2,000 ~ 20,000Hrs assured.

         Non-sonvent proof.
         High ripple capability.
         Long life
                                                                             RP Series
         RoHS compliant.
         Halogen-free capacitors are also available.




SPECCIFICATIONS
                       Iteam                                                                   Characteristics
            Rated Voltage Range                                      10 ~ 100 VDC                                           160 ~ 450 VDC
      Operating Temperature Range                                     -40 ~ +85                                              -25 ~ +85
           Capacitance Tolerance
