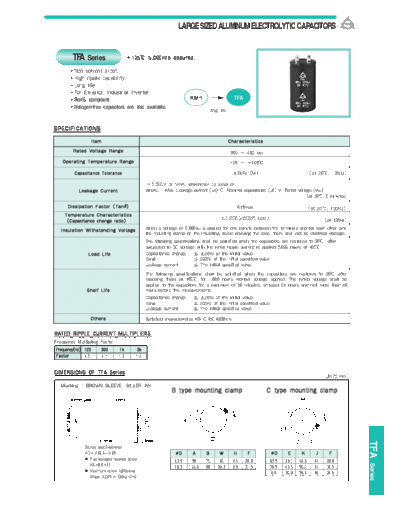

Image preview - the first page of the document



>> Download Samyoung [screw-terminal] TFA Series documenatation <<

Text preview - extract from the document

                                                             LARGE SIZED ALUMINUM ELECTROLYTIC CAPACITORS


        TFA Series                  105 5,000Hrs assured.
      Non-solvent proof.
      High ripple capability.
      Long life
      For Elevator, Industrial Inverter
      RoHS compliant.                                              KMH                    TFA
      Halogen-free capacitors are also available.
                                                                            long life


SPECIFICATIONS

                    ltem                                                                Characteristics
        Rated Voltage Range                                                             350 ~ 450 VDC
   Operating Temperature Range                                                          -25 ~ +105

         Capacitance Tolerance
