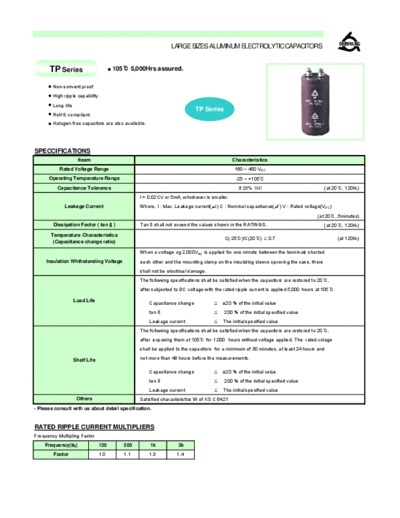

Image preview - the first page of the document



>> Download Samyoung [screw-terminal] TP Series documenatation <<

Text preview - extract from the document

                                                                  LARGE SIZES ALUMINUM ELECTROLYTIC CAPACITORS


      TP Series                            105 5,000Hrs assured.

         Non-sonvent proof.
         High ripple capability.
         Long life
                                                                              TP Series
         RoHS compliant.
         Halogen-free capacitors are also available.




SPECCIFICATIONS
                       Iteam                                                                   Characteristics
            Rated Voltage Range                                                                160 ~ 450 VDC
      Operating Temperature Range                                                               -25 ~ +105
           Capacitance Tolerance
