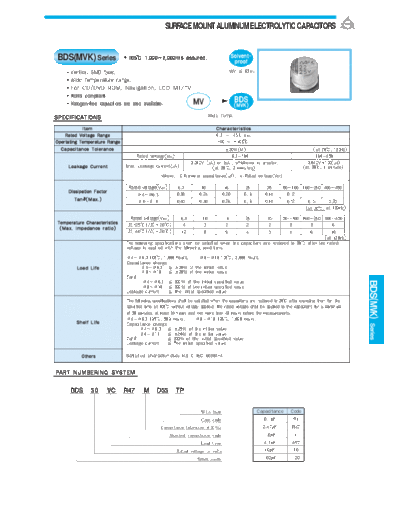

Image preview - the first page of the document



>> Download Samyoung [smd] BDS (MVK) Series documenatation <<

Text preview - extract from the document

                                                    SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS


BDS(MVK) Series                105 1,000~2,000Hrs assured.                                Solvent-
                                                                                           proof
    Vertical SMD type.                                                                   WV  63VDC
    Wide Temperature range.
    For CD/DVD-ROM, Navigation, LCD MT/TV
    RoHS compliant.
    Halogen-free capacitors are also available.                    MV                      BDS
                                                                                           (MVK)

SPECIFICATIONS                                                               Wide Temp.

            Item                                                            Characteristics
    Rated Voltage Range                                                     6.3 ~ 450 V D C
Opertating Temperature Range                                                 -40 ~ +105
  Capacitance Tolerance
