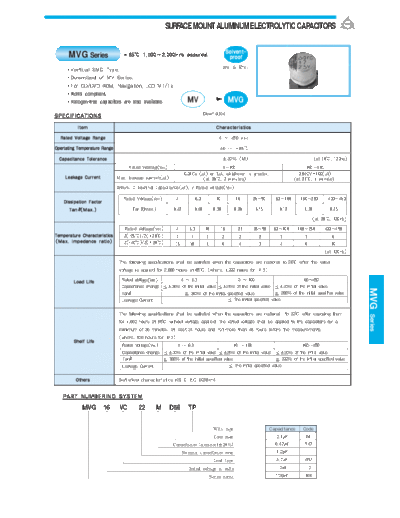

Image preview - the first page of the document



>> Download Samyoung [smd] MVG Series documenatation <<

Text preview - extract from the document

                                                       SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS

                                                                                                 Solvent-
      MVG Series                 85        1,000~2,000Hrs assured.                                proof
                                                                                             WV  63VDC
     Vertical SMD Type.
     Downsized of MV Series.
     For CD/DVD-ROM, Navigation, LCD MT/TV
     RoHS compliant.
     Halogen-free capacitors are also available.                    MV                           MVG
SPECIFICATIONS                                                                   Downsized

           Item                                                                        Characteristics

  Rated Voltage Range                                                                   4 ~ 450 V D C

Opertating Temperature Range                                                            -40 ~ +85

  Capacitance Tolerance
