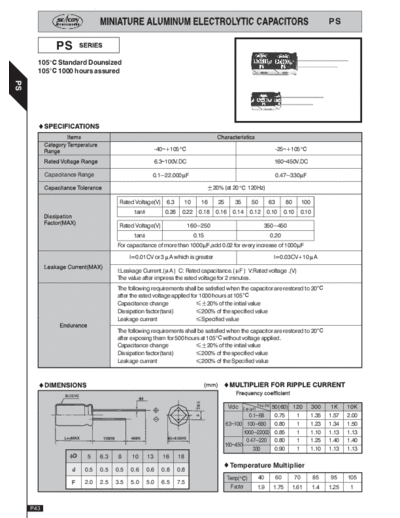

Image preview - the first page of the document
Seacon [radial thru-hole] PS Series


>> Download Seacon [radial thru-hole] PS Series documenatation <<

Text preview - extract from the document
                                                                                                                                                             PS

                PS
        105     Standard Dounsized
        105     1000 hours assured
PS




                                                         -40~+105                                                              -25~+105

                                                         6.3~100V.DC                                                           160~450V.DC

            Capacitance Range                         0.1~22.000                                                               0.47~330

                                                                                       20% (at 20            120Hz)

                                       Rated Voltage(V) 6.3             10     16        25       35          50          63          80        100
                                              tan           0.26    0.22       0.18     0.16     0.14        0.12       0.10         0.10       0.10

                                       Rated Voltage(V)                  160~250                                      350~450
                                              tan                            0.15                                             0.20
                                      For capacitance of more than 1000               ,add 0.02 for every increase of 1000
                                            I=0.01CV or 3 A which is greater                                                   I=0.03CV+10 A

                                      I:Leakage Current.( A ) C: Rated capacitance.( F ) V:Rated voltage .(V)
                                      The value after impress the rated voltage for 2 minutes.
                                      The following requirements shall be satisfied when the capacitor are restored to 20
                                      after the rated voltage applied for 1000 hours at 105
                                      Capacitance change                     20% of the initial value
                                      Dissipation factor(tan )             200% of the specified value
                                      Leakage current                      Specified value
                                      The following requirements shall be satisfied when the capacitor are restored to 20
                                      after exposing them for 500 hours at 105 without voltage applied.
                                      Capacitance change                   20% of the initial value
                                      Dissipation factor(tan )          200% of the specified value
                                      Leakage current                   200% of the Specified value




                                                                                                                  Frep.(Hz)
                                                                                               Vdc     Cap.( F)               50(60) 120              300     1K    10K
                                                                                                        0.1~68                 0.75   1               1.35   1.57   2.00
                                                                                              6.3~100 100~680                  0.80   1               1.23   1.34   1.50
                                                                                                      1000~22000               0.85   1               1.10   1.13   1.13
                                                                                                       0.47~220                0.80   1               1.25   1.40   1.40
                                                                                              160~450
                                                                                                          330                  0.90   1               1.10   1.13   1.13
                          5     6.3   8     10      13     16      18
                                                                                                Temperature Multiplier
                         0.5    0.5   0.5   0.6     0.6    0.8     0.8
                                                                                               Temp(     )        40            60         70          85    95     105
                         2.0    2.5   3.5   5.0     5.0    6.5     7.5
                                                                                                Factor            1.9          1.75     1.61           1.4   1.25    1


     P.43
                                                                                                                                                PS

                                                                                                                                               105
                                                                                                                                                     100
                                                                                                                                                     2A


 0.1                                                                                                       5x11      1.3                        5x11       1.5




                                                                                                                                                                         PS
0.22                                                                                                       5x11      2.9                        5x11       3.4
0.33                                                                                                       5x11      4.3                        5x11          5
0.47                                                                                                       5x11       9                         5x11       11
 1                                                                                                         5x11      13                         5x11       16
 2.2                                                                                                       5x11      20                         5x11       24
 3.3                                                                                                       5x11      24                         5x11       30
 4.7                                                                5x11       25    5x11       28         5x11      29          5x11   34      5x11       36
 10                                                5x11      40     5x11       35    5x11       39         5x11      43          5x11   47      6.3x11     60
 22     5x11       45        5x11      51          5x11      55     5x11       50    5x11       60         5x11      65          5x11   65      8x12       85
 33     5x11       55        5x11      59          5x11      65     5x11       65    5x11       70     6.3x11        80      6.3x11     90      8x12       110
 47     5x11       65        5x11      68          5x11      70     5x11       75    5x11       85     6.3x11        110         8x12   120     10x13      150
 68     5x11       69        5x11      72          5x11      80    6.3x11      95    6.3x11    105         8x12      130     10x13      160     10x20      195
100     5x11       85        5x11      95          5x11     100    6.3x11     130    6.3x11    140         8x12      180     10x13      190     10x20      260
150     5x11      100        5x11      105     6.3x11       145     8x12      160    8x12      195        10x13      230     10x20      265     13x25      330
220     5x11      130        5x11      140     6.3x11       170     8x12      210    8x12      240        10x13      290     10x20      320     13x25      470
330     6.3x11    180     6.3x11       200         8x12     250     8x12      260    10x13     320        10x20      390     13x20      450     13x25      600
470     6.3x11    220     6.3x11       240         8x12     290    10x13      340    10x20     450        13x20      520     13x20      560     16x25      660
680     8x12      295     10x13        352     10x16        415    10x20      500    13x20     605        13x25      738     16x25      713     16x36      1065
1000    8x12      360     10x13        430     10x16        510    10x20      610    13x20     740        13x25      900     16x25      870     18x40      1300
2200    10x16     610     10x20        750     13x20        880    13x20      1020 16x25       1080       16x36     1360     18x36      1500
3300    10x20     810     13x20        960     13x25        1120   16x25      1140 16x36       1440       18x40     1565
4700    13x20     1000    13x25       1180 16x25            1210   16x36      1410 18x36       1680
6800    13x25     1250    16x25       1280 16x32            1500   18x36      1730
10000   16x25     1330    16x36       1630 18x36            1810
15000   16x36     1700    18x36       1890                      Ripple current(A rms) at 105        ,120Hz
22000   18x40     2120                                   Case size



                 160                         200                       250                    350                          400                    450



0.47      5x11           9          5x11            10         5x11          11        5x11          11           6.3x11          11     6.3x11          12
 1        5x11           14         5x11            15        6.3x11         16       6.3x11         16           6.3x11          16      8x12           17
 2.2     6.3x11          20         6.3x11          22        6.3x11         24        8x12          23           8x12            25      10x13          31
 3.3     6.3x11          25         6.3x11          27         8x12          33        8x12          31           10x13           32      10x16          42
 4.7     6.3x11          30         8x12            36         8x12          40       10x13          37           10x16           42      10x16          50
 10       8x12           49         10x13           60         10x16         70       10x20          65           10x20           76      13x20          75
 22       10x16          90         10x20          110         10x20         132      13x20          120          13x25          125      16x25          130
 33       10x20          120        10x20          140         13x20         150      13x25          140          16x25          166      16x32          170
 47       13x20          160        13x20          170         13x25         200      16x25          190          16x32          210      16x36          225
 68       13x25          210        13x25          210         16x25         235      16x32          225          18x36          260
100       13x25          250        16x25          260         16x32         320      18x36          335          18x36          360
150       16x32          365        16x36          360         16x36         460
                                                                                                          Ripple current(mA rms) at 105          ,120Hz
220       16x32          420        16x36          515         18x40         525
                                                                                             Case size
330       18x36          590



                                                                                                                                                                  P.44
                                                                                                                       PS

                                                                                   10 F 250WV
                                                                                   2200 F 35WVF



                    Capacitance Change Ratio                                               Dissipation Factor Change
PS




                                                                                     40
              20
        C/C(%)                                                                   Tan (%)

              10


                0                                                                    20

             -10


             -20
                                                                                      0

                        0       500                    1000   HOURS                         0                 500      1000   HOURS



                        Leakage Current Change
              200


              100

                50


            LC( A )



                10


                    5
                                                                         HOURS




                            0                    500              1000




     P.45
