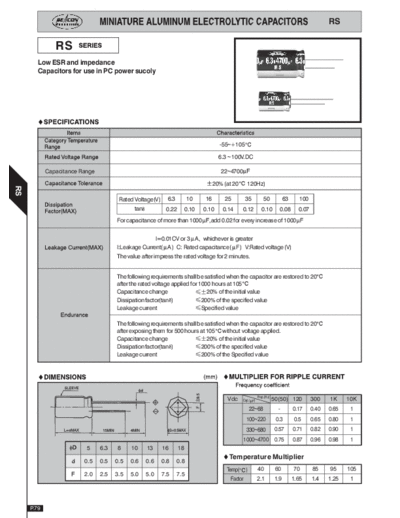

Image preview - the first page of the document
![Seacon [radial thru-hole] RS Series](/pics/5c1bd75046f96.gif)
>> Download Seacon [radial thru-hole] RS Series documenatation <<
Text preview - extract from the document
RS
RS
Low ESR and impedance
Capacitors for use in PC power sucoly
-55~+105
6.3 ~ 100V.DC
Capacitance Range 22~4700
20% (at 20 120Hz)
RS
Rated Voltage(V) 6.3 10 16 25 35 50 63 100
tan 0.22 0.10 0.10 0.14 0.12 0.10 0.08 0.07
For capacitance of more than 1000 ,add 0.02 for every increase of 1000
I=0.01CV or 3 A, whichever is greater
I:Leakage Current( A ) C: Rated capacitance( F ) V:Rated voltage (V)
The value after impress the rated voltage for 2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 20
after the rated voltage applied for 1000 hours at 105
Capacitance change 20% of the initial value
Dissipation factor(tan ) 200% of the specified value
Leakage current Specified value
The following requirements shall be satisfied when the capacitor are restored to 20
after exposing them for 500 hours at 105 without voltage applied.
Capacitance change 20% of the initial value
Dissipation factor(tan ) 200% of the specified value
Leakage current 200% of the Specified value
Frep.(Hz)
Vdc Cap.( F) 50(50) 120 300 1K 10K
22~68 - 0.17 0.40 0.65 1
100~220 0.3 0.5 0.65 0.80 1
330~680 0.57 0.71 0.82 0.90 1
1000~4700 0.75 0.87 0.96 0.98 1
5 6.3 8 10 13 16 18
Temperature Multiplier
0.5 0.5 0.5 0.6 0.6 0.8 0.8
Temp( ) 40 60 70 85 95 105
2.0 2.5 3.5 5.0 5.0 7.5 7.5
Factor 2.1 1.9 1.65 1.4 1.25 1
P.79
RS
105
6.3(0J) 10(1A) 16(1C)
Case size Max Impd Case size Max Impd Case size Max Impd
@100kHz @100kHz @100kHz
Cap 20 20 20
(mm) (w) (mm) (w) (mm) (w)
100 5x11 1.3 6.3x11 0.91 6.3x11 0.58
220 6.3x11 0.01 8x12 0.48 8x12 0.33
330 8x12 0.40 8x12 0.33 8x14 0.23
470 8x12 0.26 10x13 0.24 8x16 0.18
1000 8x14 0.17 10x17 0.12 10x20 0.091
2200 10x17 0.095 10x25 0.073 10x30 0.063
3300 10x25 0.081 10x30 0.052 13x30 0.045
4700 10x30 0.053 13x30 0.054 13x36 0.046
RS
25(1E) 35(1V) 50(1H)
Case size Max Impd Case size Max Impd Case size Max Impd
@100kHz @100kHz @100kHz
Cap 20 20 20
(mm) (w) (mm) (w) (mm) (w)
47 6.3x11 1.20 6.3x11 0.87 8x12 0.52
100 8x12 0.38 8x12 0.32 8x20 0.20
220 8x16 0.23 8x20 0.18 10x25 0.11
330 8x20 0.19 10x20 0.13 10x30 0.066
470 10x17 0.14 10x25 0.089 13x25 0.068
680 10x20 0.09 13x20 0.070 13x30 0.048
1000 10x25 0.071 13x25 0.061 16x30 0.050
2200 13x25 0.044 16x30 0.044
3300 16x30 0.045 16x36 0.035
4700 16x36 0.036
63(1J) 100(2A)
Case size Max Impd Case size Max Impd
@100kHz @100kHz
Cap 20 20
(mm) (w) (mm) (w)
22 6.3x11 2.8 8x12 0.53
33 8x12 1.1 10x16 0.35
47 8x12 0.56 10x20 0.30
68 10x16 0.35 10x20 0.19
100 10x16 0.31 10x30 0.15
220 13x20 0.16 13x25 0.087
330 13x25 0.13 16x30 0.062
470 13x30 0.091 16x36 0.047
560 16x35 0.08 18x30 0.053
680 16x32 0.065 16x35 0.043
P.80
