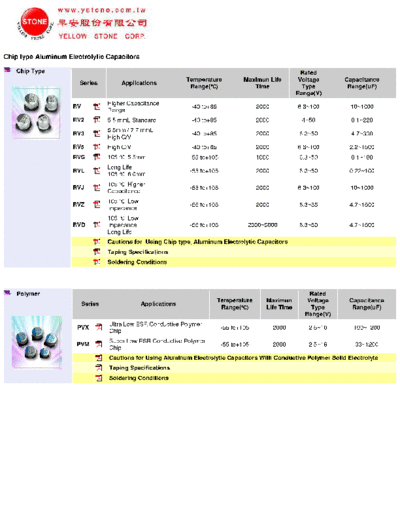

Image preview - the first page of the document
>> Download Stone Series Table documenatation <<
Text preview - extract from the document
Chip type Aluminum Electrolytic Capacitors
Chip Type Rated
Temperature Maximun Life Voltage Capacitance
Series Applications
Range() Time Type Range(uF)
Range(V)
Higher Capacitance
RV -40 to+85 2000 6.3~100 10~1000
Range
RV2 5.5 mmL Standard -40 to+85 2000 4~50 0.1~220
5.5mm / 7.7 mmL
RV3 -40 to+85 2000 6.3~50 4.7~330
High C/V
RV5 High C/V -40 to+85 2000 6.3~100 2.2~1500
RVS 105 , 5.5mmL -55 to+105 1000 6.3~50 0.1~100
Long Life,
RVL -55 to+105 2000 6.3~50 0.22~100
105 , 6.0mmL
105 , Higher
RVJ -55 to+105 2000 6.3~100 10~1000
Capacitance
105 , Low
RVZ -55 to+105 2000 6.3~35 4.7~1500
Impedance
105 , Low
RVD Impedance -55 to+105 2000~5000 6.3~50 4.7~1500
Long Life
Cautions for Using Chip type, Aluminum Electrolytic Capacitors
Taping Specifications
Soldering Conditions
Polymer Rated
Temperature Maximun Voltage Capacitance
Series Applications
Range() Life Time Type Range(uF)
Range(V)
Ultra Low ESR Conductive Polymer
PVX -55 to+105 2000 2.5~10 100~1200
Chip
Super Low ESR Conductive Polymer
PVM -55 to+105 2000 2.5~16 33~1200
Chip
Cautions for Using Aluminum Electrolytic Capacitors With Conductive Polymer Solid Electrolyte
Taping Specifications
Soldering Conditions
Aluminum Electrolytic Capacitors
Standard Radial Rated
Capacitance Range
Series Type Features Temperature Range Voltage
(uF)
Range (V)
GR Radial 85 General Standard -40 to + 85 6.3~63 220~15000
GR
Radial 105 General Standard -40 to + 105 10~100 0.1~1000
(HR)
-40 to + 105 6.3~100 100~10000
HR Radial 105 General Standard
-25 to + 105 160~450 1~470
LL Radial 105 Low Leakage Current -40 to+ 105 10~63 0.1~1000
Miniature Type Rated
Capacitance Range
Series Type Features Temperature Range Voltage
(uF)
Range (V)
MR Radial 105 7mm Height -40 to +105 4~50 0.1~470
SM Radial 105 5mm Height -40 to +105 4~50 0.1~470
SS Radial 105 5mm Height -40 to +105 4~50 0.1~22
105 7mm Height with Low Leakage
SL Radial -40 to +105 6.3~50 0.1~100
Current
Non-polarized Rated
Capacitance Range
Series Type Features Temperature Range Voltage
(uF)
Range (V)
NP Radial 85 Non-Polarized -40 to +85 10~100 0.47~1000
SN Radial 105 7mm Height with Non-Polarized -40 to +105 6.3~50 0.1~100
Hight Reliablity Rated
Capacitance Range
Series Type Features Temperature Range Voltage
(uF)
Range (V)
XR Radial 105 Low Impedance, 2000 Hours -40 to +105 6.3~50 47~4700
105 Low Impedance, High Ripple
XL Radial -40 to +105 6.3~50 100~4700
Current, 2000-3000 Hours
Axial Rated
Capacitance Range
Series Type Features Temperature Range Voltage
(uF)
Range (V)
GA Axial 85 Standard Axial Series -40 to + 85 10~100 1~4700
Aluminum Electrolytic Capacitors
Large Type Rated
Capacitance Range
Series Type Feature Temperature Range Voltage
(uF)
Range (V)
-40 to + 85 10~100 1000~47000
LP Radial 85 Snap-In Type
-25 to + 85 160~450 47~2200
-40 to + 105 10~100 470~47000
HP Radial 105 Snap-In Type
-25 to + 105 160~450 47~2200
