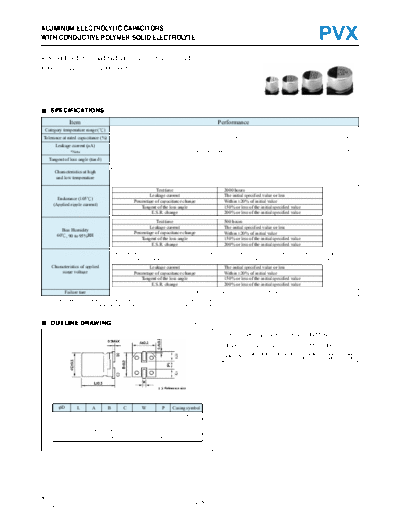

Image preview - the first page of the document
![Stone [polymer smd] PVX Series](/pics/5c2b21e39b337.gif)
>> Download Stone [polymer smd] PVX Series documenatation <<
Text preview - extract from the document
ALUMINUM ELECTROLYTIC CAPACITORS
WITH CONDUCTIVE POLYMER SOLID ELECTROLYTE PVX
Super low E.S.R. and high ripple current are realized.
Guarantees 105 , 2000 hours .
Marking color Black print
SPECIFICATIONS
Item Performance
Category temperature range ( ) 55~+105
Tolerance at rated capacitance (%) 20 (20 , 120Hz)
Leakage current ( A) Less than 0.2CV
*Note C Rated capacitance ( F) V Rated voltage (V) (20 )
Tangent of loss angle (tan ) Less than 0.12 (20 , 120Hz)
Impedance ratio (max.)
Characteristics at high Z 25 /Z+20 1.15
and low temperature
Z 55 /Z+20 1.25 (120Hz)
Test time 2000 hours
Leakage current The initial specified value or less
Endurance (105 )
Percentage of capacitance change Within 20% of initial value
(Applied ripple current)
Tangent of the loss angle 150% or less of the initial specified value
E.S.R. change 200% or less of the initial specified value
Test time 500 hours
Leakage current The initial specified value or less
Bias Humidity
Percentage of capacitance change Within 20% of initial value
60 , 90 to 95%RH
Tangent of the loss angle 150% or less of the initial specified value
E.S.R. change 200% or less of the initial specified value
The capacitors shall be subject to 1000 cycles each consisting of charge with the surge voltage specified at 15 to 35 for
30 seconds through a protective resister (Rc = 1k ) in 6 minutes per cycle. Surge voltage 1.15 times of rated voltage.
Characteristics of applied Leakage current The initial specified value or less
surge voltage Percentage of capacitance change Within 20% of initial value
Tangent of the loss angle 150% or less of the initial specified value
E.S.R. change 200% or less of the initial specified value
Failure tare 1% per 1000 hours maxmum (Confidence level 60% at 105 )
*Note: If any doubt arises, measure the leakage current after following voltage application treatment.
Voltage application treatment: DC rated voltage are appliced to the capacitors for 120 minutes at 105 .
OUTLINE DRAWING Unit mm
Part numbering system (example: 4V150F)
