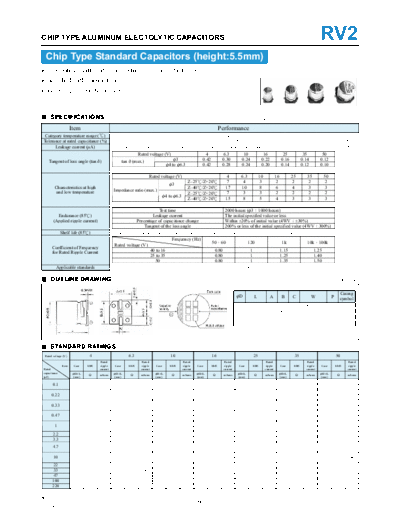

Image preview - the first page of the document
![Stone [smd] RV2 Series](/pics/5c2e035bc2824.gif)
>> Download Stone [smd] RV2 Series documenatation <<
Text preview - extract from the document
CHIP TYPE ALUMINUM ELECTOLYTIC CAPACITORS RV2
Chip Type Standard Capacitors (height:5.5mm)
Compatible with surface mounting for 5.5mm high capacitors.
Supplied with carrier taping.
Guarantees 2000 hours at 85 .
SPECIFICATIONS Marking color Black print
Item Performance
Category temperature range ( ) 40~+85
Tolerance at rated capacitance (%) 20 (20 , 120Hz)
Leakage current ( A) Less than 0.01CV or 3 whichever is larger (after 2 minutes) C Rated capacitance ( F) V Rated voltage (V) (20 )
Rated voltage (V) 4 6.3 10 16 25 35 50
3 0.42 0.30 0.24 0.22 0.16 0.14 0.12
Tangent of loss angle (tan ) tan (max.)
4 to 6.3 0.42 0.28 0.24 0.20 0.14 0.12 0.10
(20 , 120Hz)
Rated voltage (V) 4 6.3 10 16 25 35 50
Z 25 /Z+20 7 4 3 2 2 2 2
3
Characteristics at high Z 40 /Z+20 17 10 8 6 4 3 3
and low temperature Impedance ratio (max.)
Z 25 /Z+20 7 3 3 2 2 2 2
4 to 6.3
Z 40 /Z+20 15 8 5 4 3 3 3
(120Hz)
Test time 2000 hours ( 3 1000 hours)
Endurance (85 ) Leakage current The initial specified value or less
(Applied ripple current) Percentage of capacitance change Within 20% of initial value (4WV 30%)
Tangent of the loss angle 200% or less of the initial specified value (4WV 300%)
Shelf life (85 ) Test time 1000 hours; other items are the same as those for the endurance. Voltage application treatment According to JIS C5101-1
Frequency (Hz)
50 60 120 1k 10k 100k
Rated voltage (V)
Coefficient of Frequency
for Rated Ripple Current 40 to 16 0.80 1 1.15 1.25
25 to 35 0.80 1 1.25 1.40
50 0.80 1 1.35 1.50
Applicable standards JIS C5101-1, -18 1998 (IEC 60384-1 1992, -18 1993)
OUTLINE DRAWING Unit mm
Casing
D L A B C W P
symbol
3 5.3 0.2 3.3 3.3 1.5 0.45 to 0.75 0.8 B55
4 5.3 0.2 4.3 4.3 2.0 0.5 to 0.8 1.0
5 5.3 0.2 5.3 5.3 2.3 0.5 to 0.8 1.5
6.3 5.3 0.2 6.6 6.6 2.7 0.5 to 0.8 2.0
STANDARD RATINGS
Rated voltage (V) 4 6.3 10 16 25 35 50
Rated Rated Rated Rated Rated Rated Rated
Item Case ESR ripple Case ESR ripple Case ESR ripple Case ESR ripple Case ESR ripple Case ESR ripple Case ESR ripple
Rated current current current current current current current
capacitance D L D L D L D L D L D L D L
mArms mArms mArms mArms mArms mArms mArms
( F) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
3 5.3 1990 1
0.1
4 5.3 1660 3
3 5.3 905 2
0.22
4 5.3 754 5
3 5.3 603 3
0.33
4 5.3 503 6
3 5.3 424 4
0.47
4 5.3 353 7
3 5.3 199 6
1
4 5.3 166 10
2.2 3 5.3 106 8 4 5.3 75 15
3.3 3 5.3 70 9 4 5.3 50 19
3 5.3 57 11
4.7 4 5.3 42 20 5 5.3 35 26
4 5.3 49 19
3 5.3 37 18
10 4 5.3 40 23 5 5.3 23 32 5 5.3 20 34 6.3 5.3 17 44
4 5.3 33 26
22 3 5.3 32 14 4 5.3 21 31 5 5.3 18 39 5 5.3 15 44 6 5.3 11 55 6.3 5.3 9.1 59
33 4 5.3 21 31 5 5.3 14 44 5 5.3 12 48 6.3 5.3 10 63 6.3 5.3 7.0 67
47 4 5.3 15 37 5 5.3 10 52 6.3 5.3 8.5 67 6.3 5.3 7.1 75 6.3 5.3 6.4 75
100 5 5.3 7.0 63 6.3 5.3 5.0 89 6.3 5.3 4.0 98 6.3 5.3 3.3 103
220 6.3 5.3 3.2 110
(Note) Rated ripple current 85 , 120Hz ESR 20 , 120Hz
NOTE
Design, Specifications are subject to change without notice. 9
Ask factory for technical specifications before purchase and/or use.
