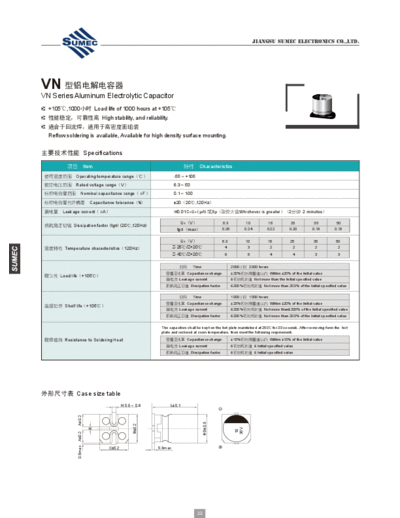

Image preview - the first page of the document



>> Download Sumec [SMD] VN Series documenatation <<

Text preview - extract from the document

                                                                                                                     JIANGSU SUMEC ELECTRONICS CO.,LTD.




VN
VN Series Aluminum Electrolytic Capacitor                                                                                                                 100
                                                                                                                                                          16V


  +105,1000 Load life of 1000 hours at +105
   High stability, and reliability.

  Reflow soldering is available, Available for high density surface mounting.


 Specifications

                             Item                                                  Characteristics
             Operating temperature range                             -55 ~ +105
             Rated voltage rangeV                                    6.3 ~ 50
                     Nominal capacitance rangeF                      0.1 ~ 100

                               Capacitance tolerance%
