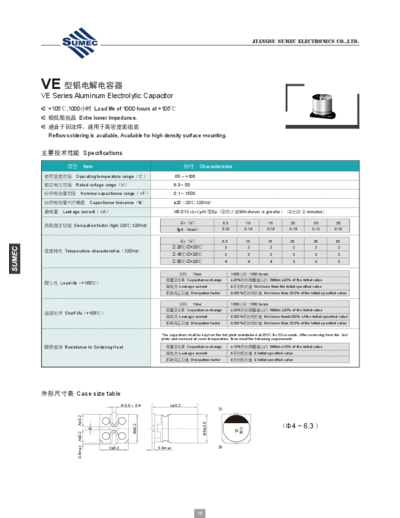

Sumec [SMD] VE Series


>> Download Sumec [SMD] VE Series documenatation <<

Text preview - extract from the document
                                                                                                                    JIANGSU SUMEC ELECTRONICS CO.,LTD.




VE
VE Series Aluminum Electrolytic Capacitor                                                                                                                 100
                                                                                                                                                          25V


  +105,1000 Load life of 1000 hours at +105
   Extre lower impedance.

  Reflow soldering is available, Available for high density surface mounting.


 Specifications

                             Item                                                 Characteristics
             Operating temperature range                             -55 ~ +105
             Rated voltage rangeV                                    6.3 ~ 50
                     Nominal capacitance rangeF                      0.1 ~ 1500

                               Capacitance tolerance%
