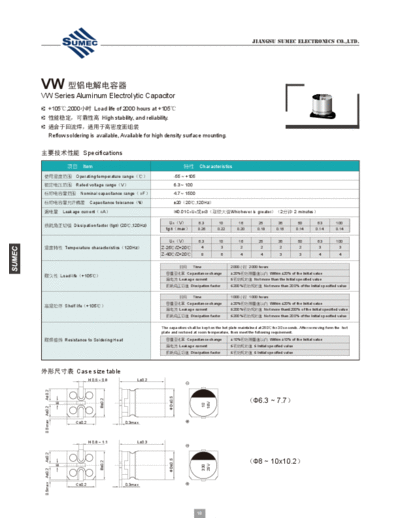

                                                                                                             JIANGSU SUMEC ELECTRONICS CO.,LTD.




VW
VW Series Aluminum Electrolytic Capacitor                                                                                                           100
                                                                                                                                                    6V


        +105,2000 Load life of 2000 hours at +105
         High stability, and reliability.

        Reflow soldering is available, Available for high density surface mounting.


 Specifications

                          Item                                                  Characteristics
                       Operating temperature range                -55 ~ +105
                       Rated voltage rangeV                       6.3 ~ 100
                         Nominal capacitance rangeF               4.7 ~ 1500

                               Capacitance tolerance%
