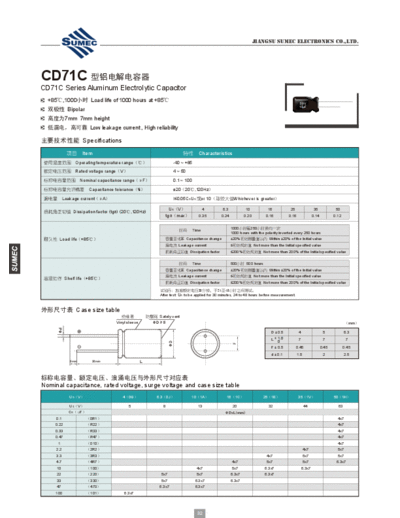

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] NA (CD71C) Series documenatation <<

Text preview - extract from the document

                                                                                                               JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD71C
CD71C Series Aluminum Electrolytic Capacitor
  +85,1000 Load life of 1000 hours at +85                                                                                                 50V
                                                                                                                                          15F
   Bipolar
  7mm 7mm height
   Low leakage current , High reliability

 Specifications
                   Item                                                     Characteristics
  Operating temperature range                                -40 ~ +85
  Rated voltage rangeV                                       4 ~ 50
  Nominal capacitance rangeF                                 0.1 ~ 100

  Capacitance tolerance%
