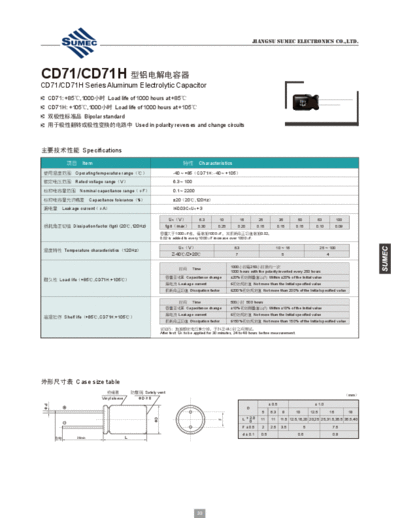

Image preview - the first page of the document
Sumec [radial thru-hole] NB-NE (CD71-CD71H) Series


>> Download Sumec [radial thru-hole] NB-NE (CD71-CD71H) Series documenatation <<

Text preview - extract from the document
                                                                                                                    JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD71/CD71H
CD71/CD71H Series Aluminum Electrolytic Capacitor
  CD71: +85,1000 Load life of 1000 hours at +85                                                                                                50V
                                                                                                                                               15F
  CD71H: +105,1000 Load life of 1000 hours at +105
   Bipolar standard
   Used in polarity reverses and change circuits



 Specifications
                Item                                                           Characteristics
           Operating temperature range                          -40 ~ +85CD71H: -40 ~ +105
           Rated voltage rangeV                                 6.3 ~ 100
               Nominal capacitance rangeF                       0.1 ~ 2200

                      Capacitance tolerance%
