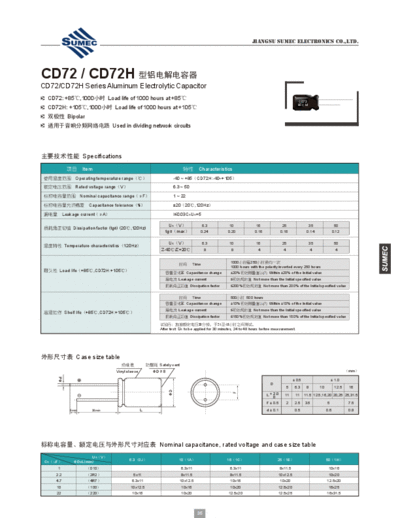

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] NC-NF (CD72-CD72H) Series documenatation <<

Text preview - extract from the document

                                                                                                             JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD72 / CD72H
CD72/CD72H Series Aluminum Electrolytic Capacitor
  CD72: +85,1000 Load life of 1000 hours at +85                                                                                               CD72
                                                                                                                                             85 M
  CD72H: +105,1000 Load life of 1000 hours at +105
   Bipolar
   Used in dividing network circuits




 Specifications
                   Item                                                        Characteristics
               Operating temperature range                     -40 ~ +85CD72H:-40~+105
               Rated voltage rangeV                            6.3 ~ 50
                   Nominal capacitance rangeF                  1 ~ 22

                      Capacitance tolerance%
