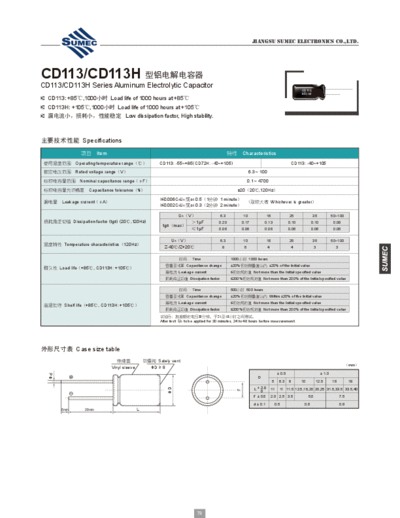

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] DA-DB (CD113-CD113H) Series documenatation <<

Text preview - extract from the document

                                                                                                            JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD113/CD113H
CD113/CD113H Series Aluminum Electrolytic Capacitor
                                                                                                                                                CD113
                                                                                                                                                85M
  CD113: +85,1000 Load life of 1000 hours at +85
  CD113H: +105,1000 Load life of 1000 hours at +105
   Low dissipation factor, High stability.



 Specifications

                      Item                                                                           Characteristics
 Operating temperature range                         CD113: -55~+85(CD72H: -40~+105)                                                      CD113: -40~+105
 Rated voltage rangeV                                                                                     6.3 ~ 100

 Nominal capacitance rangeF                                                                               0.1 ~ 4700

 Capacitance tolerance%
