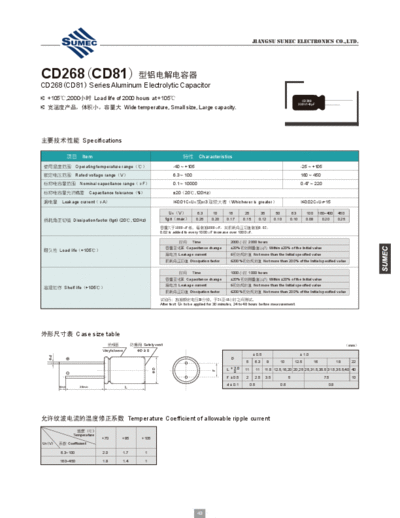

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] EA-EB (CD268-CD81) Series documenatation <<

Text preview - extract from the document

                                                                                                                       JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD268(CD81)
CD268(CD81) Series Aluminum Electrolytic Capacitor
  +105,2000 Load life of 2000 hours at +105                                                                                                                         CD268
                                                                                                                                                                  330V140F
   Wide temperature, Small size, Large capacity.




 Specifications

                    Item                                                             Characteristics
                  Operating temperature range                         -40 ~ +105                                                                                   -25 ~ +105
                  Rated voltage rangeV                                6.3 ~ 100                                                                                    160 ~ 450
                   Nominal capacitance rangeF                         0.1 ~ 10000                                                                                  0.47 ~ 220

 Capacitance tolerance%
