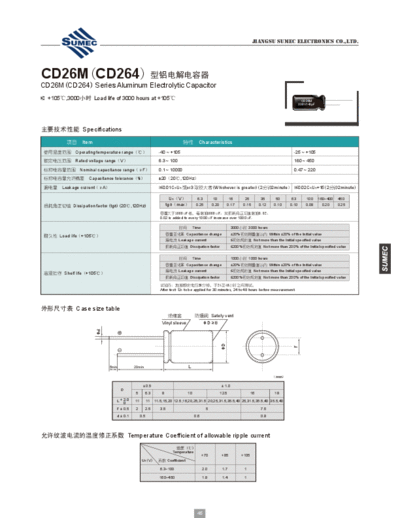

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] EC-EK (CD26M-CD264) Series documenatation <<

Text preview - extract from the document

                                                                                                                      JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD26M(CD264)
CD26M(CD264) Series Aluminum Electrolytic Capacitor
 +105,3000 Load life of 3000 hours at +105                                                                                                       CD26M
                                                                                                                                               330V140F




 Specifications
            Item                                                              Characteristics
          Operating temperature range                 -40 ~ +105                                                                          -25 ~ +105
          Rated voltage rangeV                        6.3 ~ 100                                                                           160 ~ 450
            Nominal capacitance rangeF                0.1 ~ 10000                                                                         0.47 ~ 220

               Capacitance tolerance%
