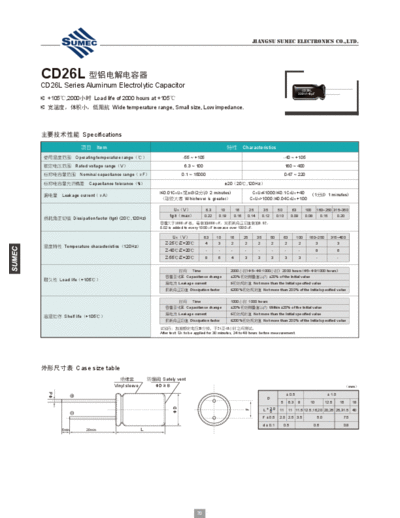

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] EF (CD26L) Series documenatation <<

Text preview - extract from the document

                                                                                                                    JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD26L
CD26L Series Aluminum Electrolytic Capacitor
                                                                                                                                                                CD26L
                                                                                                                                                              330V140F
  +105,2000 Load life of 2000 hours at +105
   Wide temperature range, Small size, Low impedance.



 Specifications
                         Item                                                                                Characteristics
             Operating temperature range                            -55 ~ +105                                                                   -40 ~ +105
             Rated voltage rangeV                                    6.3 ~ 100                                                                   160 ~ 400

              Nominal capacitance rangeF                           0.1 ~ 15000                                                                   0.47 ~ 220

                  Capacitance tolerance%
