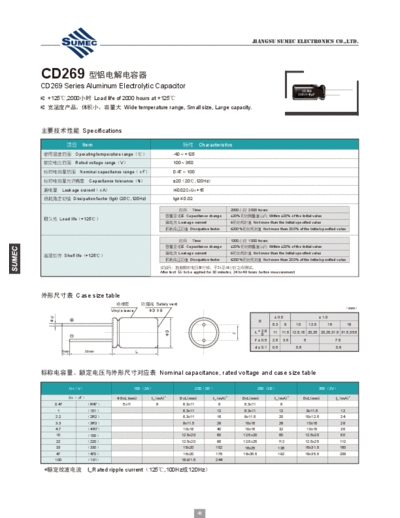

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] EN (CD269) Series documenatation <<

Text preview - extract from the document

                                                                                                                JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD269
CD269 Series Aluminum Electrolytic Capacitor
                                                                                                                                                CD269
                                                                                                                                              330V140F
  +125,2000 Load life of 2000 hours at +125
   Wide temperature range, Small size, Large capacity.



 Specifications

                     Item                                                        Characteristics
 Operating temperature range                                      -40 ~ +125
 Rated voltage rangeV                                             100 ~ 350

 Nominal capacitance rangeF                                       0.47 ~ 100

 Capacitance tolerance%
