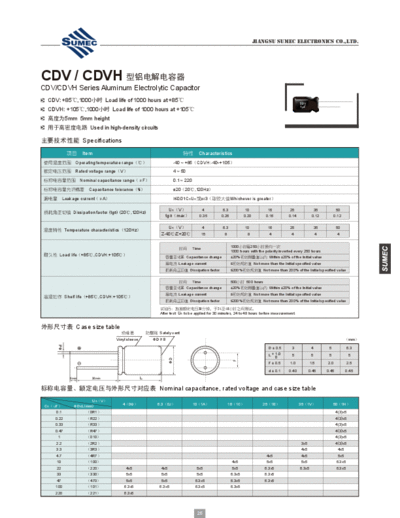

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] PA-PB (CDV-CDVH) Series documenatation <<

Text preview - extract from the document

                                                                                                                 JIANGSU SUMEC ELECTRONICS CO.,LTD.




CDV / CDVH
CDV/CDVH Series Aluminum Electrolytic Capacitor
  CDV: +85,1000 Load life of 1000 hours at +85                                                                                             50V
                                                                                                                                           1F
  CDVH: +105,1000 Load life of 1000 hours at +105
  5mm 5mm height
   Used in high-density circuits

 Specifications
                   Item                                                       Characteristics
               Operating temperature range                     -40 ~ +85CDVH:-40~+105
               Rated voltage rangeV                            4 ~ 50
                   Nominal capacitance rangeF                  0.1 ~ 220

                      Capacitance tolerance%
