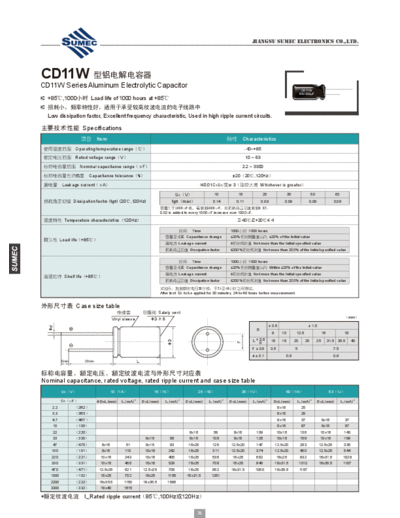

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] PD (CD11W) Series documenatation <<

Text preview - extract from the document

                                                                                                                       JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD11W
CD11W Series Aluminum Electrolytic Capacitor
                                                                                                                                                                CD11W
                                                                                                                                                               63V330F
  +85,1000 Load life of 1000 hours at +85

  Low dissipation factor, Excellent frequency characteristic, Used in high ripple current circuits.

 Specifications
                           Item                                                                                    Characteristics
  Operating temperature range                                                                                       -40~+85
  Rated voltage rangeV                                                                                              10 ~ 63

  Nominal capacitance rangeF                                                                                       2.2 ~ 3300

  Capacitance tolerance%
