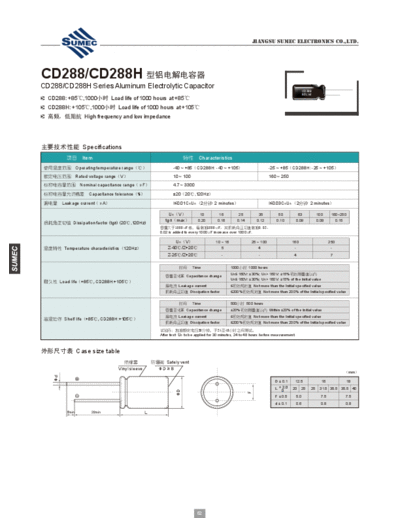

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] QA-QF (CD288-CD288H) Series documenatation <<

Text preview - extract from the document

                                                                                                    JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD288/CD288H
CD288/CD288H Series Aluminum Electrolytic Capacitor
                                                                                                                                       CD288
                                                                                                                                       85M
  CD288: +85,1000 Load life of 1000 hours at +85
  CD288H: +105,1000 Load life of 1000 hours at +105
   High frequency and low impedance




 Specifications
               Item                                                  Characteristics
 Operating temperature range                          -40 ~ +85CD288H: -40 ~ +105                              -25 ~ +85CD288H: -25 ~ +105
 Rated voltage rangeV                                 10 ~ 100                                                 160 ~ 250

 Nominal capacitance rangeF                           4.7 ~ 3300

 Capacitance tolerance%
