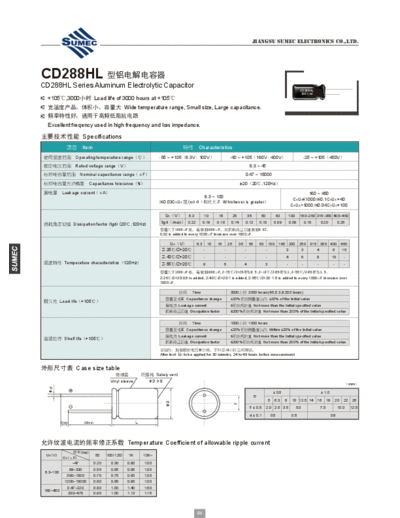

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] QK (CD288HL) Series documenatation <<

Text preview - extract from the document

                                                                                                                                             JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD288HL
CD288HL Series Aluminum Electrolytic Capacitor
                                                                                                                                                                                     CD288HL
                                                                                                                                                                                      105M
  +105,3000 Load life of 3000 hours at +105
   Wide temperature range, Small size, Large capacitance.

  Excellent freqency used in high frequency and low impedance.

 Specifications
                           Item                                                               Characteristics
 Operating temperature range                                            -55 ~ +1056.3V - 100V                         -40 ~ +105160V - 400V                                                  -25 ~ +105450V
 Rated voltage rangeV                                                                                                                    6.3 ~ 45

 Nominal capacitance rangeF                                                                                                         0.47 ~ 15000

 Capacitance tolerance%
