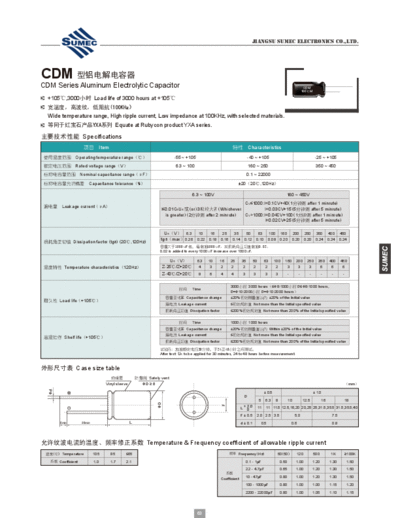

Image preview - the first page of the document
![Sumec [radial thru-hole] QM (CDM) Series](/pics/5c2e0438b0328.gif)
>> Download Sumec [radial thru-hole] QM (CDM) Series documenatation <<
Text preview - extract from the document
JIANGSU SUMEC ELECTRONICS CO.,LTD.
CDM
CDM Series Aluminum Electrolytic Capacitor CDM
105M
+105,3000 Load life of 3000 hours at +105
(100KHz)
Wide temperature range, High ripple current, Low impedance at 100KHz, with selected materials.
YXA Equate at Rubycon product YXA series.
Specifications
Item Characteristics
Operating temperature range -55 ~ +105 -40 ~ +105 -25 ~ +105
Rated voltage rangeV 6.3 ~ 100 160 ~ 250 350 ~ 450
Nominal capacitance rangeF 0.1 ~ 22000
Capacitance tolerance% ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
