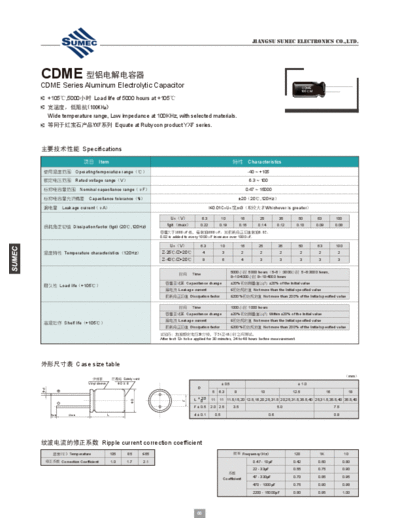

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] QN (CDME) Series documenatation <<

Text preview - extract from the document

                                                                                                                                 JIANGSU SUMEC ELECTRONICS CO.,LTD.




CDME
CDME Series Aluminum Electrolytic Capacitor                                                                                                                      CDME
                                                                                                                                                                105M

    +105,5000 Load life of 5000 hours at +105
    (100KHz)
    Wide temperature range, Low impedance at 100KHz, with selected materials.
    YXF Equate at Rubycon product YXF series.



 Specifications
                              Item                                                                                              Characteristics
 Operating temperature range                                                                                                    -40 ~ +105
 Rated voltage rangeV                                                                                                           6.3 ~ 100

 Nominal capacitance rangeF                                                                                                   0.47 ~ 15000

 Capacitance tolerance%
