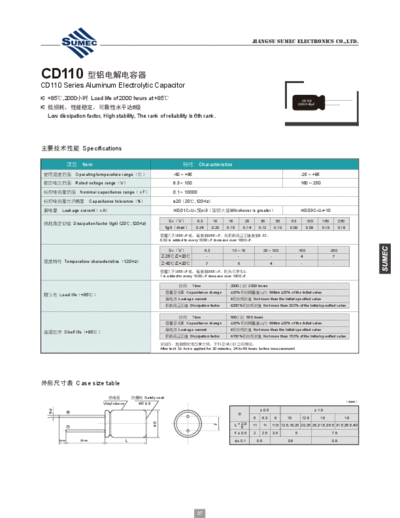

Image preview - the first page of the document
>> Download Sumec [radial thru-hole] RA (CD110) Series documenatation <<Text preview - extract from the document JIANGSU SUMEC ELECTRONICS CO.,LTD.
CD110
CD110 Series Aluminum Electrolytic Capacitor
+85,2000 Load life of 2000 hours at +85 CD110
330V140F
6
Low dissipation factor, High stability, The rank of reliability is 6th rank.
Specifications
Item Characteristics
Operating temperature range -40 ~ +85 -25 ~ +85
Rated voltage rangeV 6.3 ~ 100 160 ~ 250
Nominal capacitance rangeF 0.1 ~ 10000
Capacitance tolerance%
