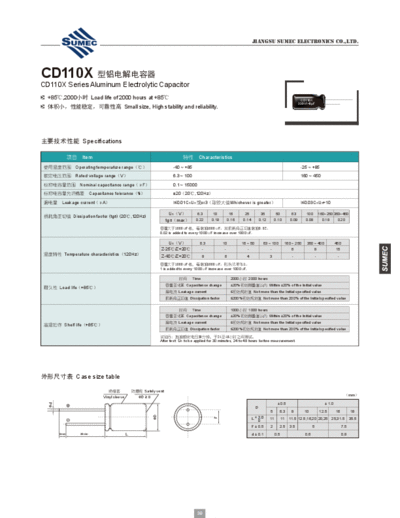

>> Download Sumec [radial thru-hole] RF (CD110X) Series documenatation <<Text preview - extract from the document JIANGSU SUMEC ELECTRONICS CO.,LTD.
CD110X
CD110X Series Aluminum Electrolytic Capacitor
+85,2000 Load life of 2000 hours at +85 CD110X
330V140F
Small size, High stability and reliability.
Specifications
Item Characteristics
Operating temperature range -40 ~ +85 -25 ~ +85
Rated voltage rangeV 6.3 ~ 100 160 ~ 450
Nominal capacitance rangeF 0.1 ~ 15000
Capacitance tolerance%
