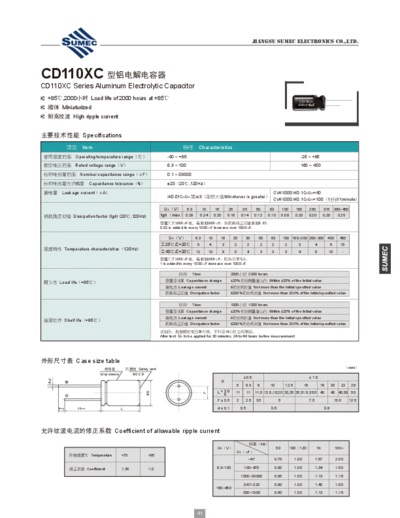

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] RG (CD110XC) Series documenatation <<

Text preview - extract from the document

                                                                                                                                  JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD110XC
CD110XC Series Aluminum Electrolytic Capacitor
  +85,2000 Load life of 2000 hours at +85                                                                                                                            CD110XC
                                                                                                                                                                    330V140F
   Miniaturized
   High ripple current


 Specifications
                 Item                                                           Characteristics
 Operating temperature range                                  -40 ~ +85                                                                                              -25 ~ +85
 Rated voltage rangeV                                         6.3 ~ 100                                                                                              160 ~ 450
 Nominal capacitance rangeF                                   0.1 ~ 33000

 Capacitance tolerance%
