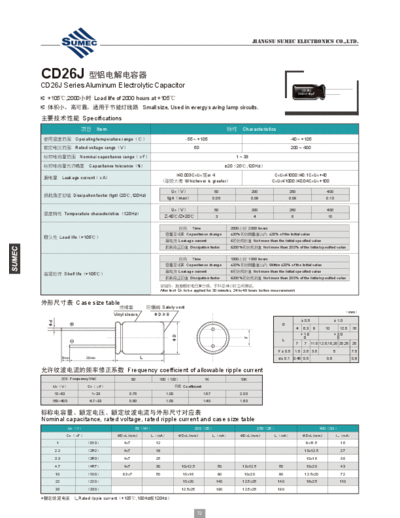

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] TB (CD26J) Series documenatation <<

Text preview - extract from the document

                                                                                                                      JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD26J
CD26J Series Aluminum Electrolytic Capacitor
                                                                                                                                                       CD26J
                                                                                                                                                     330V140F
  +105,2000 Load life of 2000 hours at +105
   Small size, Used in evergy saving lamp circuits.
 Specifications
                               Item                                                                             Characteristics
                   Operating temperature range                                 -55 ~ +105                                                -40 ~ +105
                   Rated voltage rangeV                                              50                                                      200 ~ 400

                     Nominal capacitance rangeF                                                              1 ~ 33

                        Capacitance tolerance%
