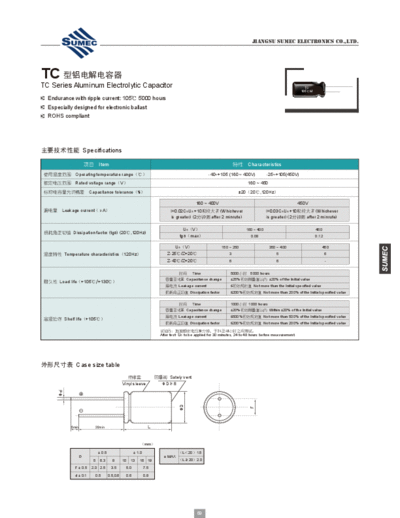

Image preview - the first page of the document
Sumec [radial thru-hole] TC Series


>> Download Sumec [radial thru-hole] TC Series documenatation <<

Text preview - extract from the document
                                                                                                                          JIANGSU SUMEC ELECTRONICS CO.,LTD.




TC
TC Series Aluminum Electrolytic Capacitor                                                                                                                 TC
                                                                                                                                                        105M

  Endurance with ripple current: 105 5000 hours
  Especially designed for electronic ballast
  ROHS compliant




 Specifications

                            Item                                                                                        Characteristics
 Operating temperature range                                                                     -40~+105 (160 ~ 400V)             -25~+105(450V)
 Rated voltage rangeV                                                                                                   160 ~ 450

 Capacitance tolerance%
