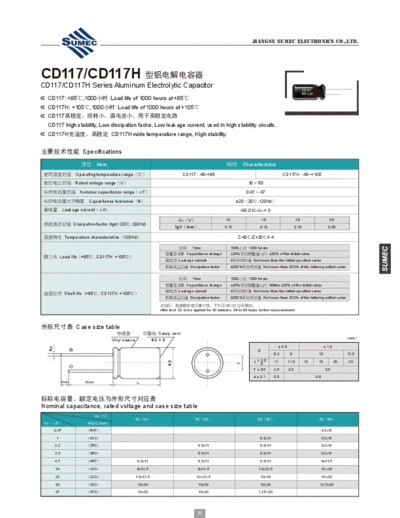

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] WA-WB (CD117-CD117H) Series documenatation <<

Text preview - extract from the document

                                                                                                                JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD117/CD117H
CD117/CD117H Series Aluminum Electrolytic Capacitor
                                                                                                                                                       CD117
                                                                                                                                                       105M
  CD117: +85,1000 Load life of 1000 hours at +85
  CD117H: +105,1000 Load life of 1000 hours at +105
  CD117
  CD117 high stability, Low dissipation factor, Low leakage current, used in high stability circuits.
  CD117H CD117H wide temperature range, High stability.


 Specifications

                           Item                                                                             Characteristics
  Operating temperature range                                           CD117: -40~+85                                               CD117H: -40~+105
  Rated voltage rangeV                                                                                        10 ~ 50

  Nominal capacitance rangeF                                                                                 0.47 ~ 47

  Capacitance tolerance%
