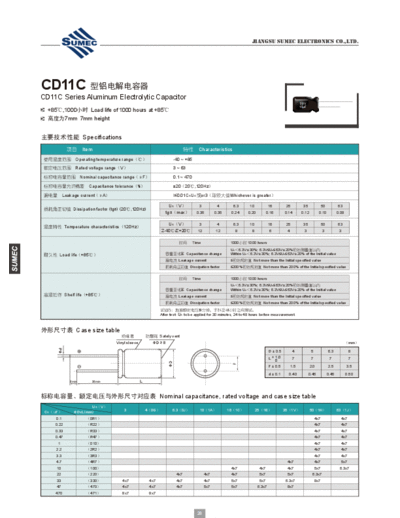

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] XA (CD11C) Series documenatation <<

Text preview - extract from the document

                                                                                                               JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD11C
CD11C Series Aluminum Electrolytic Capacitor
                                                                                                                                                 50V
                                                                                                                                                 15F
  +85,1000 Load life of 1000 hours at +85
  7mm 7mm height


 Specifications
                   Item                                                         Characteristics
               Operating temperature range                       -40 ~ +85
               Rated voltage rangeV                              3 ~ 63

                   Nominal capacitance rangeF                    0.1 ~ 470

                      Capacitance tolerance%
