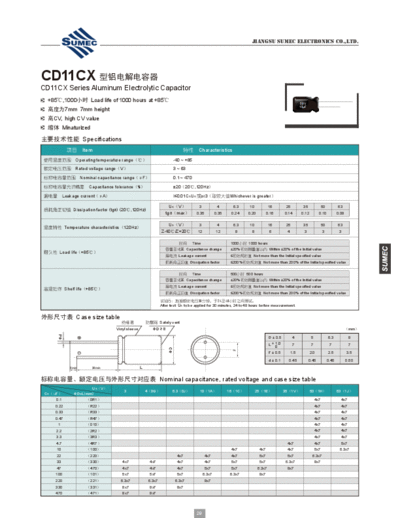

Image preview - the first page of the document
Sumec [radial thru-hole] XB (CD11CX) Series


>> Download Sumec [radial thru-hole] XB (CD11CX) Series documenatation <<

Text preview - extract from the document
                                                                                                             JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD11CX
CD11CX Series Aluminum Electrolytic Capacitor
  +85,1000 Load life of 1000 hours at +85                                                                                                      50V
                                                                                                                                               15F
  7mm 7mm height
  CV, high CV value
   Minaturized

 Specifications
                  Item                                                        Characteristics
 Operating temperature range                                   -40 ~ +85
 Rated voltage rangeV                                          3 ~ 63

 Nominal capacitance rangeF                                    0.1 ~ 470

 Capacitance tolerance%
