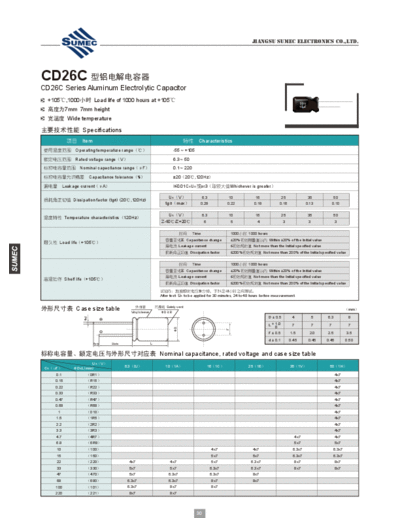

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] YA (CD26C) Series documenatation <<

Text preview - extract from the document

                                                                                                                 JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD26C
CD26C Series Aluminum Electrolytic Capacitor
  +105,1000 Load life of 1000 hours at +105                                                                                                     50V
                                                                                                                                                15F
  7mm 7mm height
   Wide temperature

 Specifications
              Item                                                               Characteristics
 Operating temperature range                                      -55 ~ +105
 Rated voltage rangeV                                             6.3 ~ 50

 Nominal capacitance rangeF                                       0.1 ~ 220

 Capacitance tolerance%
