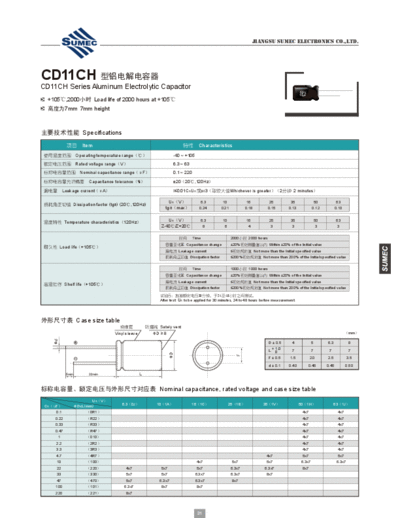

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] YB (CD11CH) Series documenatation <<

Text preview - extract from the document

                                                                                                            JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD11CH
CD11CH Series Aluminum Electrolytic Capacitor
                                                                                                                                       50V
                                                                                                                                       15F
  +105,2000 Load life of 2000 hours at +105
  7mm 7mm height



 Specifications
                    Item                                                   Characteristics
 Operating temperature range                                 -40 ~ +105
 Rated voltage rangeV                                        6.3 ~ 63

 Nominal capacitance rangeF                                  0.1 ~ 220

 Capacitance tolerance%
