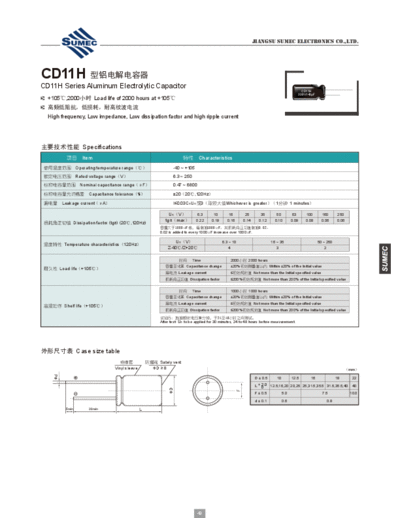

Image preview - the first page of the document



>> Download Sumec [radial thru-hole] YC (CD11H) Series documenatation <<

Text preview - extract from the document

                                                                                                             JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD11H
CD11H Series Aluminum Electrolytic Capacitor
                                                                                                                                              CD11H
                                                                                                                                            330V140F
  +105,2000 Load life of 2000 hours at +105

  High frequency, Low impedance, Low dissipation factor and high ripple current




 Specifications
                Item                                                      Characteristics
 Operating temperature range                               -40 ~ +105
 Rated voltage rangeV                                      6.3 ~ 250

 Nominal capacitance rangeF                                0.47 ~ 6800

 Capacitance tolerance%
