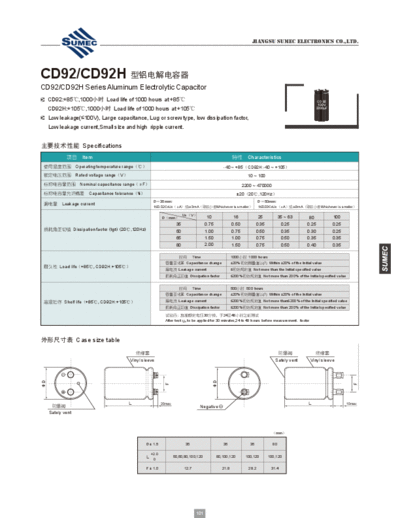

Image preview - the first page of the document



>> Download Sumec [screw] JA (CD92-CD92H) Series documenatation <<

Text preview - extract from the document

                                                                                                                    JIANGSU SUMEC ELECTRONICS CO.,LTD.




CD92/CD92H
CD92/CD92H Series Aluminum Electrolytic Capacitor
    CD92:+85,1000 Load life of 1000 hours at +85                                                                                                         CD 92
                                                                                                                                                         100V
    CD92H:+105,1000 Load life of 1000 hours at +105                                                                                                     2200F


    Low leakage(100V), Large capacitance, Lug or screw type, low dissipation factor,
    Low leakage current,Small size and high ripple current.


 Specifications
                    Item                                                                                          Characteristics
                  Operating temperature range                                                     -40 ~ +85CD92H:-40 ~ +105
                  Rated voltage rangeV                                                                            10 ~ 100
                   Nominal capacitance rangeF                                                                   2200 ~ 470000
                       Capacitance tolerance%
